Do ceramic disc capacitors have polarity?
Matthew Perez news
Electrolytic CapacitorsNot all capacitors are polarized, but when they are, it's very important not to mix their polarity up. Ceramic capacitors -- the small (1µF and less), commonly yellow guys -- are not polarized. You can stick those in either way.
.
Thereof, why ceramic capacitors have no polarity?
The ceramic capacitor is a non-polarity device, that means they do no have polarities. So we can connect it in any direction on a circuit board. For this reason, they are generally much safer than electrolytic capacitors. Many types of capacitors, such as the tantalum bead do not have a polarity.
Likewise, does polarity matter in a capacitor? Capacitor Physical Size The electrolytic and tantalum capacitors are polarized (polarity sensitive), and are always labeled as such. Ceramic, mylar, plastic film, and air capacitors do not have polarity markings, because those types are nonpolarized (they are not polarity sensitive).
Also, which side of a ceramic capacitor is positive?
Polarized capacitors have polarity +ve and -ve , and should be connected correctly positive terminal to positive of power supply and negative terminal to negative. If you connect wrong polarity they will short and explode.
How do you determine the polarity of a capacitor?
To determine polarity in CAPACITORS: Electrolytic capacitors are often marked with a stripe. That stripe indicates the NEGATIVE lead. If it's an axial leaded capacitor (leads come out of opposite ends of the capacitor), the stripe may be accompanied by an arrow that points to the negative lead.
Related Question Answers
Does it matter which way you wire a capacitor?
In an AC circuit it does not matter if a capacitor (intended for that circuit) is wired backwards. In a DC circuit, some capacitors can be wired backwards, others cannot.What happens if you reverse the polarity of a capacitor?
Electrolytic capacitor are polar by nature, and have positive and negative terminals clearly marked. If the polarity is reversed while connecting, the dielectric in the form of oxide layer is damaged. A heavy current flows, large amount of heat is generated, and capacitor is damaged.How can you tell if a capacitor is damaged?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.What is the difference between polar and nonpolar capacitor?
A non-polarized ("non polar") capacitor is a type of capacitor that has no implicit polarity -- it can be connected either way in a circuit. A polarized ("polar") capacitor is a type of capacitor that have implicit polarity -- it can only be connected one way in a circuit.Can I replace polarized capacitor with non polarized?
You cannot use a polarized cap to replace a non-polarized cap. The polarized cap cannot have negative voltage on it, and the design might have a negative voltage on that cap.How do you find the value of ceramic capacitors?
Ceramic capacitor usually uses 3 digits like 102, 103, 101 for indicating its value and values in term of Pico farad. In ceramic capacitor if the three digits are ABC, then the value would be AB*10^C Pico farad. Here the digit is 104 that means 10*104pf = 100000pf = 100nf = 0.1uf.Where are ceramic capacitors used?
Ceramic capacitors are majorly used in the resonant circuit in transmitter stations. Class 2 high-power capacitors are used in high voltage laser power supplies, power circuit breakers, induction furnaces etc. Surface mount capacitors are often used in printed circuit boards and high-density applications.How can you tell if a ceramic capacitor is positive or negative?
Only when the positive electrode of the electrolytic capacitor is connected to the power supply (the black test pen when the power is blocked), and the negative terminal is connected to the negative power supply (the red test pen when the power is blocked), the leakage current of the electrolytic capacitor is small (What's the difference between a start capacitor and a run capacitor?
The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.What is the use of ceramic capacitor?
Ceramic capacitors are mainly used for high stability performances and wherein devices with low losses. These devices provide very accurate results and also the capacitance values of these capacitors are stable with respect to the applied voltage, frequency and temperature.Which side of a diode is positive?
The positive side is called the anode, and the negative one is called the cathode. The diode circuit symbol, with the anode and cathode marked. Current through a diode can only flow from the anode to the cathode, which would explain why it's important for a diode to be connected in the correct direction.What is the value of 104 ceramic capacitor?
The 3 digit code 104 written over ceramic capacitor indicates its value. The first two digits (10) of this code are first two digits of capacitor value and third digit (4) gives the number of zeroes to be added so as to get capacitor value in picofarads which is 10,0000 pF or 0.1 uF.How do you tell the positive and negative terminal of an LED?
Turn the multimeter to the diode setting (usually indicated by a diode symbol), and touch each probe to one of the LED terminals. If the LED lights up, the positive probe is touching the anode, and the negative probe is touching the cathode.Is there a positive and negative side to a capacitor?
When the capacitor is polarized, it's generally marked with a minus (-) or plus (+) to indicate the negative and positive ends. This means the positive end of the capacitor must be at a higher voltage than the negative one so that charge flows through the circuit from the positive end to negative end.Can Capacitors be wired backwards?
Yes, you can wire an electrolytic capacitor backwards.Can you replace a capacitor with a higher UF?
You can almost always replace a capacitor with one of a higher voltage. This is the limiting factor of a capacitor due to dielectric breakdown voltages that the manufacturer chose. Varying capacitance gets a little trickier.What is the symbol for capacitor?

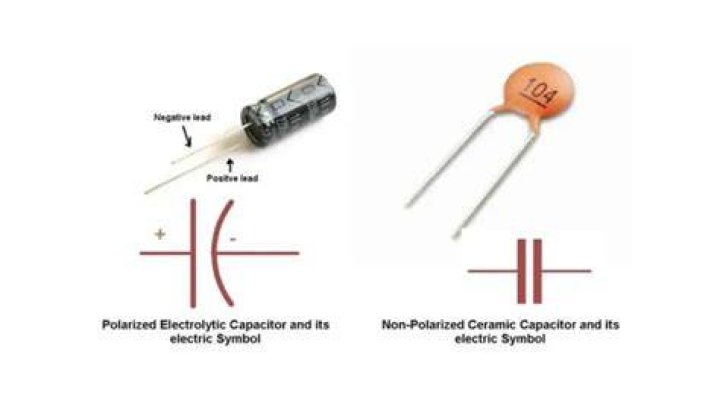

There are two commonly used capacitor symbols. One symbol represents a polarized (usually electrolytic or tantalum) capacitor, and the other is for non-polarized caps. In each case there are two terminals, running perpendicularly into plates. The symbol with one curved plate indicates that the capacitor is polarized.How do you hook up a capacitor to a motor?
Connect the positive terminal of a small hobby motor to the first terminal of a resistor. Connect the second terminal of the resistor to the positive terminal of the capacitor. Use a resistor in the 10K-ohm to 100K-ohm range at first. The capacitor should be in the 1- to 100-farad range.How many types of capacitors are there?
4 Types of Capacitors- Film Capacitors.
- Ceramic Capacitors.
- Electrolytic Capacitors.
- Variable Capacitors.
- DISC-CAPS.
