What are the components of sprinkler irrigation system?
Rachel Hernandez general

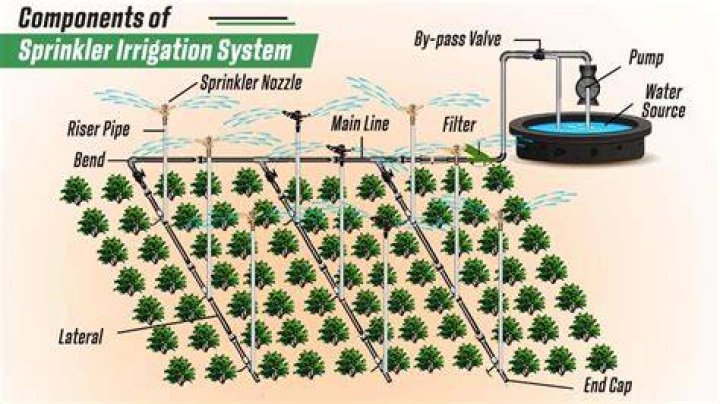

A sprinkler system usually consists of the followingcomponents (i) A pump unit (ii) Tubings- main/submains andlaterals (iii) Couplers (iv) Sprinker head (v) Other accessoriessuch as valves, bends, plugs and risers. (i) Pumping Unit:Sprinkler irrigation systems distribute water by spraying it overthe fields.
.
Herein, what are the components of an irrigation system?
The system design and component selection is integral todelivering a system that meets the need of the crop being irrigatedin an efficient and reliable manner.
- Pumps.
- Automatic Irrigation Controllers.
- Irrigation Emitters.
- Solenoid Cables & Connectors.
- Filters.
- Backflow Prevention Devices.
- Pipes.
Likewise, what is sprinkler system in irrigation? Sprinkler irrigation is a method of applyingirrigation water which is similar to natural rainfall. Wateris distributed through a system of pipes usually by pumping.It is then sprayed into the air through sprinklers so thatit breaks up into small water drops which fall to theground.
In this way, what are the parts of a sprinkler valve?
All The Parts of an Irrigation / LawnSprinkler Valve The main components of sprinkler valvesare the diaphram, solenoid, springs, and various gaskets orO-rings. The solenoid, an electric cylinder, is a crucial part ofan automatic valve.
How do you Dewinterize a sprinkler system?
How to Dewinterize a Sprinkler System
- Locate the vacuum breaker, which is usually near the manifoldoutside.
- Use a wrench to turn the small brass knob at the base of thevacuum breaker clockwise until tight.
- Locate the main water line.
- Turn the valve that connects the main line to the sprinklersystem a half turn.
Related Question Answers
How does an automatic sprinkler system work?
An automatic sprinkler valve controls the flow ofwater from the mainline to each zone. The ability to preciselycontrol watering according to specific conditions in the yard isthe key to how an automatic sprinkler system conserveswater. Lateral line pipes carry water from the automaticvalves to the sprinkler heads.How do you install an irrigation system?
- plot types and locations of sprinkler heads. Plan theSystem.
- install an anti siphon valve. Access the Water Line.
- dig the trench for system.
- attach one end of valve manifold assembly to water.
- attach risers using 90 degree connectors.
- level sprinkler heads with soil level.
- timer controls length and frequency of waterings.
How much does it cost to install irrigation system?
Both Key and Allen say the typical yard they deal withis about a quarter-acre in size and the sprinkler systemscost about $2,500 to $3,500 to install. Allen says thecost to install sprinklers on half-acre lawns runs $3,500 to$5,500, and one-acre properties cost $6,000 to$8,000.What is a backflow preventer sprinkler system?
A backflow preventer is a device that's installedon your home's water pipes that allows water to flow in onedirection but never in the opposite direction. Its sole job is toprevent drinking water from being contaminated due tobackflow.How do I increase the pressure on my sprinkler system?
To fix low pressure you can install aboost pump in your main irrigation line. Aboost pump will increase the pressure enoughto run your rotors and high-pressure sprinkler heads. To beefficient wire a a switch called a pump start relay to yoursprinkler circuits that require highpressure.What is a Rain Bird irrigation system?
Rain Bird® 32ETIThe same sprinklers used in professionallyinstalled systems worldwide, these rugged sprinklersdeliver a rotating curtain of water with large droplets that fallquickly to avoid windblown overspray and to cover evenly from headto perimeter for reduced overall wateringtime.How do you drain a sprinkler system?
Manual Drain Valve- Locate the manual drain valves situated downstream of each zonevalve.
- Turn off the water supply by closing the main valve to thesprinkler system.
- Open all the manual drain valves for each zone in the system,and leave them open so that all the water drains from the pipes andsprinkler heads.
How do you test a sprinkler valve?
How to Test Sprinkler Solenoids- Turn off the water supply. Open the bonnet of the sprinklervalve and unscrew the solenoid, taking care that you don't drop theplunger and the spring.
- Open the solenoid housing and inspect the plunger.
- Reinsert the solenoid plunger into the housing.
- Turn on the water and test the sprinkler.
How do I find my sprinkler valves?
The sprinkler head that is closest to thevalve should pressurize slightly before the rest of thesprinklers. Start at that sprinkler and try tofind the valve nearby. The cheapest and easiest wayto find buried irrigation valves is often to probethe soil with a thin rod, such as a long screwdriver.How long do sprinkler valves last?
Generally speaking, the life expectancy of asprinkler system is about 20 years, on average. As for itscomponents taken separately, good quality heads will lastyou anywhere between 10 to 15 years, while inexpensive ones willonly be good for 2 or 3 years.What causes sprinkler valves to leak?
The other reason may be water leaking through thezone valve (a check valve in the sprinklerwill not fix this leak). The most common reason why waterleaks through a valve is because there is debrisobstructing the valves diaphragm.Can one sprinkler valve control two zones?
Running multiple zones at once is usuallynot possible due water-pressure and flow limitations at residentialproperties. As with any standard irrigation controller,you can wire multiple solenoids/valves to thesame zone output if you want.What are the 4 types of irrigation?
The four methods of irrigation are:- Surface.
- Sprinkler.
- Drip/trickle.
- Subsurface.
What are the types of sprinkler irrigation?
Types of Sprinklers:- Spray Heads: More properly called “fixed sprayheads” these are the small heads that spray a fan-shapedpattern of water.
- Rotors:
- Rotary Nozzles & Rotators:
- Pop-Up Style Sprinklers:
- Shrub Style Sprinklers:
- Spray Type Sprinklers, Rotary Nozzles, and Rotators:
- Rotor Type Sprinklers:
- Drip Emitters:
What are the advantages of sprinkler irrigation?
One of the main advantages of the sprinklerirrigation technology is more efficient use of water forirrigation in agriculture. Sprinkler systemseliminate water conveyance channels, thereby reducingwater loss. Water is also distributed more evenlyacross crops helping to avoid wastage.What is sprinkler system definition?
Definition of sprinkler system. : asystem for protecting a building against fire bymeans of overhead pipes which convey an extinguishing fluid(such as water) to heat-activated outlets.What is subsurface irrigation system?
Subsurface drip irrigation is alow-pressure, high efficiency irrigation system that usesburied drip tubes or drip tape to meet crop water needs.Subsurface irrigation saves water and improves yields byeliminating surface water evaporation and reducing the incidence ofweeds and disease.What are the modern methods of irrigation?
Modern Methods of Irrigation- Drip System of Irrigation. The most commonly used method ofirrigation these days is the drip method. They lay the pipes inrows near the crops or plants.
- Sprinkler System. This system mimics the phenomenon of rain.Water is carried by pipes to central locations on the farm.
What are the different types of sprinkler systems?
There are various types of fire sprinklers and below aredescriptions of these so you know which one is best suited for yourcommercial building.- Pre-action. Pre-action fire sprinkler systems are filled withair and water is allowed to pass through when the smoke alarm ordetector goes off.
- Dry Pipe.
- Wet Pipe.
- Deluge.
