What does brake lining wear mean?

It means you wither need your brake pads (brake linings) or brake shoes (brake linings) replaced. Just a standard brake job, could be the front or rear. Here is the thing with Mercedes brakes: they use sensors to show wear instead of the annoying squeaking brake wear indicator that you have to touch the brakes to stop.

Subsequently, one may also ask, when should brake linings be replaced?

Most car mechanics and makers say you should replace your car's drum brake lining when it has worn down to about 1/8 inches or less. You can tell when this happens by measuring the lining with a tape measure. You should plan on having to replace them about every 12,000 miles, or a year of use, whichever comes first.

Likewise, what is the function of brake lining? Function During braking, brake linings apply frictional forces to a cylindrical drum attached to the wheel to reduce its speed and enhance control of the vehicle.

Also, are brake pads and brake linings the same thing?

In this view of an automobile disc brake, the brake pad is the black material held by the red brake caliper. The brake lining is that part of the brake pad which actually contacts the metal brake disc (rotor) when the brake is engaged.

What is the minimum brake lining thickness?

Minimum Brake Pad Thickness The brake pad thickness has to be at least 6.4 mm or more for its proper functioning. You can get away with thinner pads sometimes. But, quick replacement when the thickness is between 6.4 to 3.2 mm will save the brake system from severe damage.

How much does it cost to replace brake lining?

Brake Pad Replacement Cost Comparison

Component	Parts	Labor
Brake Pads	$50 – $150	$100
Rotors	$200 – $400	150
Calipers	$50 – $100	$100

How do I know if I need new brake discs?

There are two ways to check for brake wear on disc brakes: by looking and by listening. First, check for wear by looking at your brake pads through the spaces between the wheel's spokes. The outside pad will be pressed against a metal rotor. Generally, there should be at least 1/4 inch of pad.

How do you know if you need new rotors?

When you drive, the car will tell you if the brakes or brake rotors are in need of replacing. Squealing or squeaking is usually an excellent indication. If you hear grinding, head straight to the mechanic, because this is a definite sign that you have brake wear on your pads and they are worn to the metal.

What are the symptoms of a bad brake caliper?

What are the Symptoms of a Bad Brake Caliper?

Pulling to one side. A seized brake caliper or caliper sliders can cause the vehicle to pull to one side or the other while braking.
Fluid leaks.
Spongy or soft brake pedal.
Reduced braking ability.
Uneven brake pad wear.
Dragging sensation.
Abnormal noise.

How do I check my rotors?

If you have an open-spoke wheel design, you can run your finger vertically down the brake rotor friction surface. If you can feel and see noticeable grooves, then it's time for new brake rotors. For cars with hub caps that don't expose the rotor, you will need to remove your wheel to inspect your brake rotors.

How do you know when brake rotors are bad?

Pay attention to what you feel while driving. One of the most common indicators of worn out brake rotors is rattling, wobbling, or shaking while braking. These vibrations are normally felt through your foot as you apply the brakes, and it is usually indicative of brake rotors that have become warped.

How long can you drive on bad brakes?

Manufacturers offer a wide range for the effective “life” of their brake pads, typically between 25,000 and 65,000 miles. But the way you drive can have a big impact on brake pad wear. If you want to get the most miles out of your brake pads, consider the following four suggestions.

What is the average lifetime of brake rotors?

Brake rotors should last a minimum of 50,000 miles (80,467 km). The average life expectancy for a quality set of rotors is 30,000 to 70,000 miles (48,280 – 112,654 km). Brake pads have a similar long life-span, but it's not typical to see more than 70,000 out of a pair of Rotors and Pads.

Should I replace all brake pads at once?

The short answer is that you can replace your brake pads in pairs (front or rear) as necessary, but don't have to replace both sets at the same time unless they both need it. The reason for this is that your front brakes actually do most of the work.

How do I know when my brakes need replacing?

Here are some signs to look for to know when to replace brake pads:

Squealing or Screeching Noises. Generally, the first indication any driver will notice is a squealing, screeching, or whining noise when the brakes are engaged.
Less than a Quarter Inch of Brake Pad.
Deep Metallic Grinding and Growling.
Indicator Lights.

How long do brake shoes last?

The brake shoes on your car are designed to last around 35,000 miles, but in some cases they will not make it that far. There are a variety of things that can lead to increased wear on a set of brake shoes, like damaged hardware or warped brake drums.

How do I know if I need front or rear brakes?

How to Know When Rear Brakes Need Replacement

Listen to the sounds of your brakes. The most obvious indicator your rear brakes need replacing is the squeaking that you hear when you press down on the brakes.
Respond to the service light in your car.
Check your brake fluid.
Press down on your brake pedal for resistance.

How do I fix my brakes?

How Do I Change My Brakes?

Step 1: Acquire Tools. 3/8" Ratchet.
Step 2: Buy Brake Pads And Rotors.
Step 3: Loosen Lugs.
Step 4: Raise Car.
Step 5: Loosen Caliper.
Step 6: Remove Caliper Carrier.
Step 7: Remove Rotor.
Step 8: Install New Rotor.

What are the materials used for brake lining?

The three kinds of brake lining material are non-asbestos, semi-metallic, and ceramic friction.

Non-Asbestos Brake Lining. Non-asbestos is an organic lining that is environmentally friendly and durable.
Semi-Metallic Brake Lining. The second lining material is semi-metallic.
Ceramic Friction Brake Lining.

How do I change my brake pads?

Before You Begin: The Tools You'll Need.
Step 1: Get Your Car Off the Ground.
Step 2: Remove the Caliper Assembly and Old Brake Pads.
Step 3: Replace the Brake Pads.
Step 4: Replace the Brake Caliper Assembly.
Step 5: Replace Your Tires and Wrap It Up.

What is the difference between a brake pad and a brake shoe?

The main difference between the two different types of brake pads and shoes is their position in the vehicle. The brake shoes are designed to fit inside your drum-style brakes, while brake pads are placed on top of disk brakes, and serve to pressurize these discs when you apply the brakes.

How thick should my brake pads be?

Recommended Brake Pad Thickness. If you are purchasing new brake pads, then you will want their friction material to be around 10 to 12 millimeters. This is the standard thickness size that you will see for most new brake pads. It should take about 50,000 miles (more or less) for the thickness to 3 to 4 millimeters.

What is a brake drum?

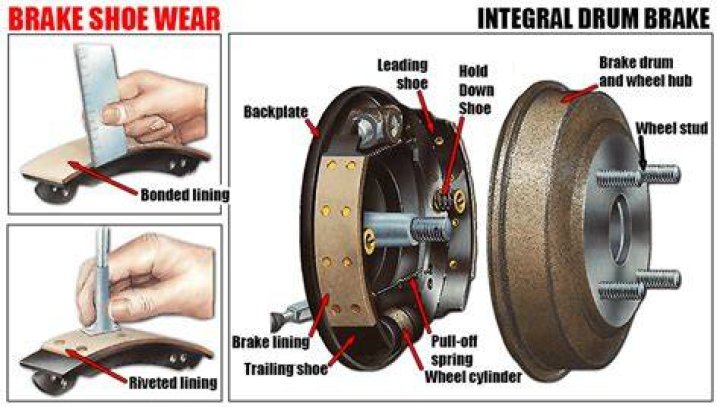

A drum brake is a brake that uses friction caused by a set of shoes or pads that press outward against a rotating cylinder-shaped part called a brake drum. The term drum brake usually means a brake in which shoes press on the inner surface of the drum.

Can I just replace brake pads and not rotors?

Troubleshooting brake rotorsRotors will need to be replaced by 70,000 miles on most vehicles, but it depends on use. Rotors, like brake pads, should be replaced in pairs for even stopping performance. Grooves worn into the rotor by the brake pads.
