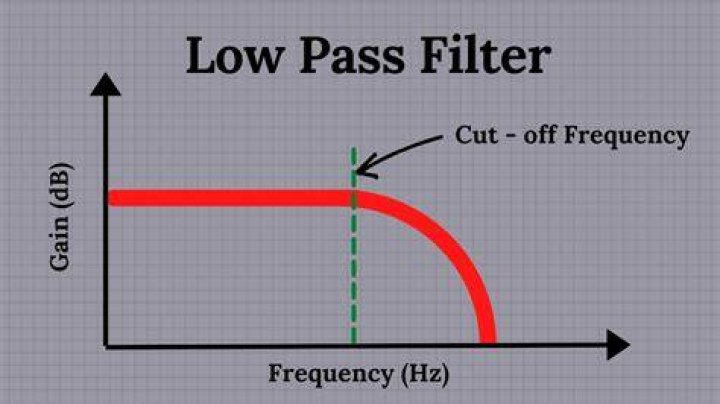

A low-pass filter (LPF) is a filter that passes signals with a frequency lower than a selected cutoff frequency and attenuates signals with frequencies higher than the cutoff frequency..
In this regard, what does a low pass filter do on an amplifier?
Applications of Active Low Pass Filters are in audio amplifiers, equalizers or speaker systems to direct the lower frequency bass signals to the larger bass speakers or to reduce any high frequency noise or “hiss” type distortion.
Beside above, what is cut off frequency of low pass filter? A low-pass filter allows for easy passage of low-frequency signals from source to load, and difficult passage of high-frequency signals. The cutoff frequency for a low-pass filter is that frequency at which the output (load) voltage equals 70.7% of the input (source) voltage.
Besides, what are the three response ranges of a low pass filter?
A Transfer Function Of A Low Pass Filter May Be Divided Into Which Three Response Ranges? Actual Response, Ideal Response, And Straight-line Response Gain, Ripple, And Roll-off Pass Band, Roll-off, And Stop Band Attenuation, Gain, And Roll-off Question 2.
When would you use a low pass filter?
Try using a low-pass filter on the output of a delay. As the cutoff frequency of the delay component is reduced, you should expect to hear a more 'realistic' spatial separation between the direct signal and the delay. LPF cutoff frequencies in the 2kHz-5kHz range are typical.
Related Question Answers
What are the applications of low pass filter?
Applications Of Active Low Pass FiltersThese are also used in equalizers and audio amplifiers. In analog to digital conversion these are used as anti-aliasing filters to control signals. In digital filters these are used in blurring of images, smoothing sets of data signals.What are the different types of filters?
Four Major Types of FiltersThe four primary types of filters include the low-pass filter, the high-pass filter, the band-pass filter, and the notch filter (or the band-reject or band-stop filter).What Hz is best for bass?
Bass: 60 to 250 HzThe fundamental notes of rhythm are centered on this area. Most bass signals in modern music tracks lie around the 90-200 Hz area. The frequencies around 250 Hz can add a feeling of warmth to the bass without loss of definition. Too much boost in the bass region tends to make the music sound boomy.What is the difference between active and passive low pass filter?
Passive filters consume the energy of the signal, but no power gain is available; while active filters have a power gain. 2. Active filters require an external power supply, while passive filters operate only on the signal input. Only active filters use elements kike op-amps and transistors, which are active elements.Why all pass filter is used?
All pass filter passes all the frequency components at constant gain. But it provides different phase shifts at different frequencies. Hence, all pass filter can be used as a phase corrector. It is used to compensate the phase changes of voice signals that may have occurred over telephone wires during transmission.How integrator is a low pass filter?
RC Integrator. The RC integrator is a series connected RC network that produces an output signal which corresponds to the mathematical process of integration. Thus when fed with a pure sine wave, an RC integrator acts as a passive low pass filter reducing its output above the cut-off frequency point.What is the output of low pass filter?
Low Pass Filter SummarySo to summarize, the Low Pass Filter has a constant output voltage from D.C. (0Hz), up to a specified Cut-off frequency, ( ƒC ) point. This cut-off frequency point is 0.707 or -3dB ( dB = –20log*VOUT/IN ) of the voltage gain allowed to pass.What is 3dB point?
The 3dB point, or 3dB frequency, is the point at which the signal has been attenuated by 3dB (in a bandpass filter). This is generally considered the point for determining the filter's bandwidth. The bandwidth is defined as the difference between the upper and lower 3dB points.What happens if inductors are used in low frequency applications?
What happens if inductors are used in low frequency applications? Explanation: For low frequency applications more number of turns of wire must be used, which in turn adds to the series resistance degrading inductor's performance. 6. This is because of the variety of cheaper op-amp and the absence of inductor's.How does low pass filter reduce noise?
Low Pass Filters. A low-pass filter (LPF) is then applied to obtain the low-frequency signal of interest and reject the modulated amplifier's 1/f noise to ensure an adequate signal-to-noise ratio at the system output.What is a low pass filter audio?
A low pass filter, known as LPF, is essentially a filter that reduces or eliminates the frequencies above the cutoff frequency. It passes low-frequency signals and blocks or impedes, high-frequency signals. In audio applications, this filter is often referred as a high-cut filter or treble-cut filter.What does LPF mean in medical terms?
LPF. Abbreviation for low-power field.What is LPF for LFE?
This is the low pass filter (LPF) setting of the low frequency effects (LFE) channel. This is the high frequency cutoff point for the LFE, also known as the . 1 channel in a 5.1/6.1/7.1 surround source. In practice this should always be set to 120Hz since the LFE channel supports information up to that frequency.What is first order low pass filter?
A first order filter is a filter with a single energy storage device (either a capacitor or inductor) and a resistor. To get a low pass first order RC filter, you feed the input voltage signal across the resistor and capacitor and have the output signal being the voltage across the capacitor.Why RC circuit is low pass filter?
Low pass filter is a circuit which passes only low frequency signals and attenuates high frequency signals when passed through a network over certain cutoff frequency and it is determined by the RC time constant. The below figure shows the circuit of Low pass RC circuit.What are the basic circuit components for a low pass filter?
To build a low pass filter, the components we will use are a function generator, a 470mH inductor, and a 10KΩ resistor. The formula to find the frequency cutoff point of an RL circuit is, frequency= R/2πL.What is meant by active filter?
An active filter is a type of analog circuit implementing an electronic filter using active components, typically an amplifier. Amplifiers included in a filter design can be used to improve the cost, performance and predictability of a filter.How does a filter circuit work?
The filter is a device that allows passing the dc component of the load and blocks the ac component of the rectifier output. Thus the output of the filter circuit will be a steady dc voltage. The filter circuit can be constructed by the combination of components like capacitors, resistors, and inductors.What is second order low pass filter?
A Second Order Low Pass Filter is to be design around a non-inverting op-amp with equal resistor and capacitor values in its cut-off frequency determining circuit. If the filters characteristics are given as: Q = 5, and ƒc = 159Hz, design a suitable low pass filter and draw its frequency response.
