What is a piston caliper?
Isabella Campbell updates
CALIPER PISTONS. Brake calipers are an essential component of your overall brake system, and the piston is the key component of the brake caliper. Pistons are responsible for forcing the brake pads to make contact with the brake rotor to bring your vehicle to a stop.
.
Subsequently, one may also ask, what is a single piston caliper?

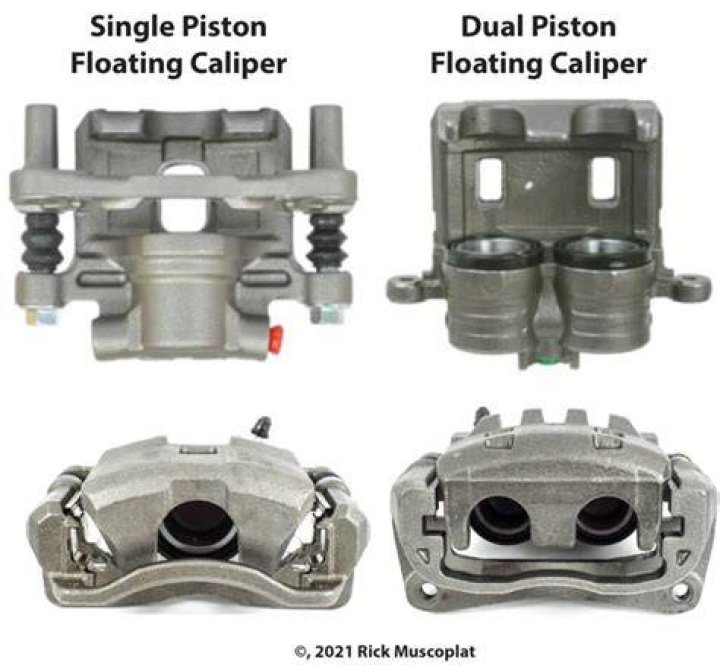

Single (1) Piston calipers are always sliding calipers that move slightly as the brake pads wear. Most have a bracket. Dual (2) Piston Calipers are usually sliding calipers with brackets, but some 2 piston calipers are fixed position with opposing pistons – one on the inboard and one on the outboard side.
Beside above, when should caliper pistons be replaced? Caliper replacement is required if a caliper is leaking brake fluid, if a piston is sticking, or the caliper is worn or damaged. Leaks are very dangerous and should never be ignored because loss of fluid can cause brake failure.
Keeping this in consideration, where is the piston on a caliper?
Pistons are found in both floating and fixed brake calipers. There's usually one or two large diameter pistons in a floating caliper, on the inboard side of the brake rotor. When activated, the piston(s) draw both pads toward the brake disc.
What is a 4 piston caliper?
So four-piston caliper as the name suggests will have four pistons pressing the brake, (two pistons per pad) against the rotor.
Related Question Answers
How do single piston calipers work?
When you step on the brake, brake fluid from the master cylinder creates hydraulic pressure on one or more pistons in the brake caliper, forcing the pads against the rotor. This piston pushes the entire caliper when the brakes are applied, creating friction from the brake pads on both sides of the rotor.How does a dual piston caliper work?
Dual Piston CaliperA larger pad will absorb more initial heat (less thermal shock). A larger brake pad will have better wear characteristics and a longer life due to even pressure distribution. A larger pad is able to absorb more unwanted noise and vibration because it is able to cover more of the rotor.How many Pistons does a car have?
Internal combustion engines can operate with just a single cylinder and therefore one piston (motorcycles and lawnmowers) or as many as 12, but most automobiles have four, six, or eight.How many Pistons do Brembo brakes have?
Brembo kits consist of cross-drilled or slotted ventilated, one-piece or composite discs and aluminium calipers with 4, 6 or 8 pistons; a complete set of high performance pads; metal-braided hoses and high quality hardware.How long do calipers last?
On modern vehicles, it's not uncommon for calipers to last at least 100,000 miles or 10 years. Because caliper life can vary significantly depending on how you drive, the climate you live in, and the humidity level in the air, automakers have always avoided making replacement recommendations at specific intervals.How do you Unseize a brake caliper?
To remove a caliper piston that has become seized, the hydraulic pressure of the brake system itself can be used. Remove the caliper from the disc, and pump the brake pedal to move the piston past the corroded portion. Now you should be able to disassemble and rebuild it.What are the symptoms of a bad brake caliper?
What are the Symptoms of a Bad Brake Caliper?- Pulling to one side. A seized brake caliper or caliper sliders can cause the vehicle to pull to one side or the other while braking.
- Fluid leaks.
- Spongy or soft brake pedal.
- Reduced braking ability.
- Uneven brake pad wear.
- Dragging sensation.
- Abnormal noise.
Why do rear calipers screw in?
The job of a brake caliper tool is to retract the piston or pistons back into the caliper so that the brake pads can be easily removed and replaced. The piston can't simply be pushed back into the caliper because it's threaded, like a screw, and needs to be wound back in.Is it worth rebuilding a brake caliper?
You can rebuild a brake caliper but it's almost always a better idea to just replace it… However, it is usually the caliper slide pins that stick, not the piston itself. If that's the case, you can clean/lube them very easily yourself. If the caliper piston retracts smoothly, it's fine.Can you grease caliper pistons?
unless you are contemplating on using DOT5 (silicone) fluid, otherwise: using silicone grease during the assembling of caliper piston seal is a big no-no, citing glycol brake fluid contamination issues.Can you replace just one caliper?
Generally you don't replace calipers in pairs, only replace the damaged side. With that being said you may still not need to replace the caliper to solve your problem depending on the design. Their may be a kit that comes with new sleeves, o-rings, and grease.Should brake calipers be replaced in pairs?
While brake calipers don't necessarily need to be replaced in pairs, brake pads should always be replaced on both the left and right wheels at the same time to keep braking power balanced between the two wheels.How do you fix a brake caliper piston?
- Step 1: Jack Up the Car, Support on Axle Stands and Remove the Wheel.
- Step 2: Remove the Caliper.
- Step 3: Pump Out the Piston Using Brake Pressure.
- Step 4: Remove the Old Seals and Clean Up the Caliper.
- Step 5: Fit the New Piston & Seals.
- Step 6: Replace Any Extra Parts, Refit the Caliper & Bleed the Brakes.
