Which type of lens is used in electron microscope?
Michael Green general
Electron and ion microscopes use a beam of charged particles instead of light, and use electromagnetic or electrostatic lenses to focus the particles. They can see features as small as one-tenth of a nanometer (one ten billionth of a meter), including individual atoms.
.
Besides, what are the lenses in an electron microscope made from?
Glass lenses of course, would impede electrons, therefore electron microscope (EM) lenses are electromagnetic converging lenses. A tightly wound wrapping of copper wire makes up the magnetic field that is the essence of the lens.

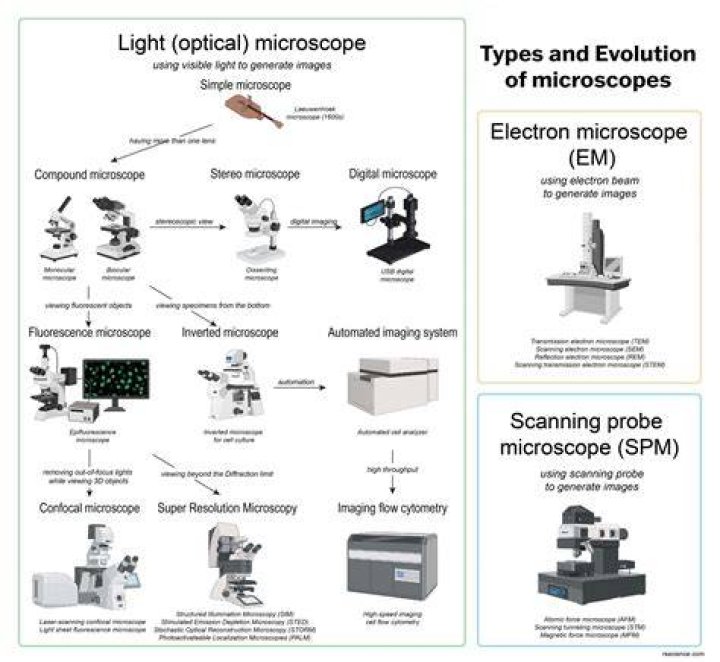

Also Know, what are the 2 types of electron microscope? There are two main types of electron microscope – the transmission EM (TEM) and the scanning EM (SEM). The transmission electron microscope is used to view thin specimens (tissue sections, molecules, etc) through which electrons can pass generating a projection image.
Furthermore, what are the 3 types of electron microscopes?
The main types of electron microscopes are the Scanning Electron Microscope (SEM), Transmission Electron Microscope (TEM) and the Scanning Transmission Microscope (STEM).
What type of image does a transmission electron microscope produce?
A Transmission Electron Microscope produces a high-resolution, black and white image from the interaction that takes place between prepared samples and energetic electrons in the vacuum chamber. Air needs to be pumped out of the vacuum chamber, creating a space where electrons are able to move.
Related Question Answers
What are the disadvantages of electron microscopes?
Electron Microscope DisadvantagesThe main disadvantages are cost, size, maintenance, researcher training and image artifacts resulting from specimen preparation. This type of microscope is a large, cumbersome, expensive piece of equipment, extremely sensitive to vibration and external magnetic fields.What is the highest magnification of electron microscope?
about 1,000,000x
What Cells Can you see using an electron microscope?
The cell wall, nucleus, vacuoles, mitochondria, endoplasmic reticulum, Golgi apparatus, and ribosomes are easily visible in this transmission electron micrograph.What is the magnification of an electron microscope?
The magnification of an electron microscope may be as high as 10,000,000x, with a resolution of 50 picometers (0.05 nanometers).How big is an electron microscope?
A scanning transmission electron microscope has achieved better than 50 pm resolution in annular dark-field imaging mode and magnifications of up to about 10,000,000× whereas most light microscopes are limited by diffraction to about 200 nm resolution and useful magnifications below 2000×.What is the smallest thing we can see with an electron microscope?
Light microscopes let us look at objects as long as a millimetre (10-3 m) and as small as 0.2 micrometres (0.2 thousands of a millimetre or 2 x 10-7 m), whereas the most powerful electron microscopes allow us to see objects as small as an atom (about one ten-millionth of a millimetre or 1 angstrom or 10-10 m).Why is electron microscope called so?
The electron microscope is a type ofmicroscope that uses a beam ofelectrons to create an image of the specimen. It is capable of much higher magnifications and has a greater resolving power than a lightmicroscope, allowing it to see much smaller objects in finer detail.Why is SEM used?
Scanning Electron Microscopy. A scanning electron microscope (SEM) scans a focused electron beam over a surface to create an image. The electrons in the beam interact with the sample, producing various signals that can be used to obtain information about the surface topography and composition.What is the basic principle of electron microscope?
Working Principle: An electron microscope uses an 'electron beam' to produce the image of the object and magnification is obtained by 'electromagnetic fields'; unlike light or optical microscopes, in which 'light waves' are used to produce the image and magnification is obtained by a system of 'optical lenses'.What is difference between SEM and Fesem?
The Field Emission Scanning Electron Microscope (FESEM) is an instrument which, just like the SEM, provides a wide variety of information from the sample surface, but with higher resolution and a much greater energy range. The biggest difference between a FESEM and a SEM lies in the electron generation system.Can electron microscopes see color?
See the first color images produced by an electron microscope. Electron microscopes can magnify an object up to 10 million times, allowing researchers to peer into the inner workings of, say, a cell or a fly's eye, but until now they've only been able to see in black and white.Who invented electron microscope?
Ernst RuskaMax KnollWhat can you see with a SEM microscope?
A typical SEM instrument, showing the electron column, sample chamber, EDS detector, electronics console, and visual display monitors. The scanning electron microscope (SEM) uses a focused beam of high-energy electrons to generate a variety of signals at the surface of solid specimens.What is the wavelength of an electron?
For an electron with KE = 1 eV and rest mass energy 0.511 MeV, the associated DeBroglie wavelength is 1.23 nm, about a thousand times smaller than a 1 eV photon. (This is why the limiting resolution of an electron microscope is much higher than that of an optical microscope.)What is the price of electron microscope?
Today, the cost of an upper echelon field emission scanning electron microscope, with accessories, is approaching $1 million. This can be out of range for most laboratories.Why is the electron microscope important?
The reasons these microscopes are so important is the sheer level of detail that can be seen with them. This means electron microscopes can be used to examine things only theoretically known before 1943, when the electron microscope was invented.What is reflection electron microscope?
reflection electron microscopy abbr., REM (rus. микроскопия, электронная отражательная abbr., ОЭМ) — a branch of microscopy that uses scattered high-energy electrons falling on a surface at glancing angles to generate an image of the surface.Which is better SEM or TEM?
While both SEM and TEM are forms of electron beam microscopy, they produce an image through different processes. TEM give information about the internal structure of a sample, but can only produce a 2D image of a small area, whereas SEM is better of 3D surface morphology.Is a light microscope 2d or 3d?
Magnification*: Electron microscopes have much higher magnification than light microscopes.
| Light Microscope | Electron Microscope |
|---|---|
| Specimen must be thin but can adjust focus to different positions (heights) within thin specimen on glass slide | Very thin sections only in TEM Images surfaces (only) in SEM |
| 3. Depth: 2D or 3D ? | |
