Schottky diode applications. Powerrectifier: Schottky diodes are also used ashigh power rectifiers. Their high current density andlow forward voltage drop mean that less power is wasted than ifordinary PN junction diodes were used. Schottkydiodes tend to have a high reverse leakagecurrent..
In this regard, what is the use of Schottky diode?
A Schottky diode is one type of electroniccomponent, which is also known as a barrier diode. It iswidely used in different applications like a mixer, in radiofrequency applications, and as a rectifier in power applications.It's a low voltage diode. The power drop is lower comparedto the PN junction diodes.
what is the difference between Schottky diode and normal diode? Whereas in Schottky diode the junction is inbetween N type semiconductor to Metal plate. Theschottky barrier diode has electrons as majoritycarriers on both sides of the junction. So it is a unipolar device.In other words the forward voltage drop (Vf) is less compared tonormal PN junction type diodes.
In this manner, which diode is used in high frequency circuits?
High-Frequency Diodes (PINDiodes):Structure and Features A high resistivity I-type semiconductor isutilized to provide significantly lower diodecapacitance (Ct).
How does a Schottky barrier rectifier work?

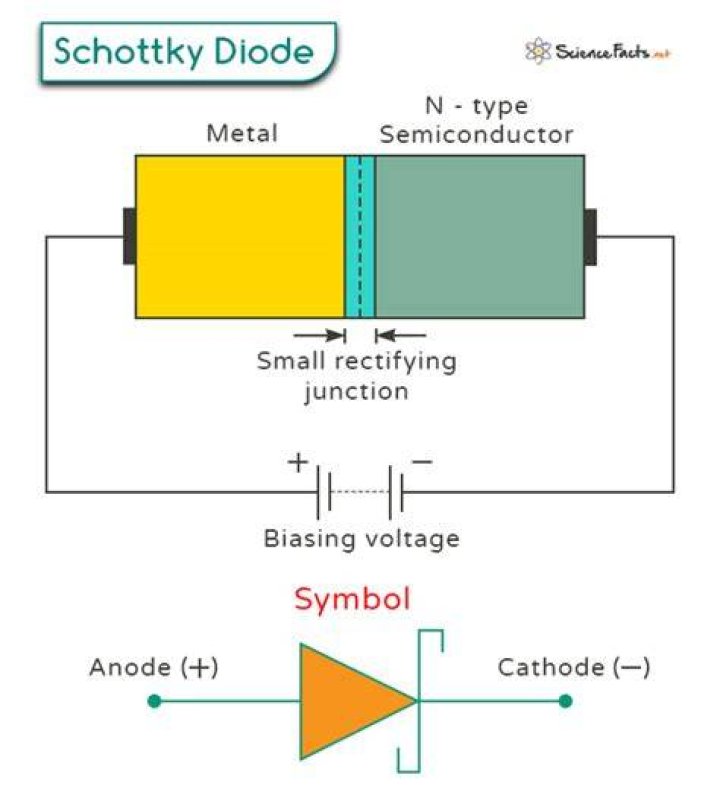

Construction of Schottky BarrierDiode In this diode, connection created between metaland semiconductor to form Schottky barrier i.e. metal sideperforms as an anode and n-type semiconductor works as acathode. The selection of the combination of the metal andsemiconductor decides the forward voltage of thediode.
Related Question Answers
What are the advantages of Schottky diode?
One of the primary advantages of using aSchottky diode over a regular diode is their lowforward voltage drop. This allows a Schottky diode toconsume less voltage than a standard diode, using only0.3-0.4V across its junctions.What is the symbol for diode?
The positive side is called the anode, and the negativeone is called the cathode. The diode circuit symbol,with the anode and cathode marked.How many types of diodes are there?
Different Types of Diodes. There are severaltypes of diodes are available for use in electronics design,namely; a Backward diode, BARITT diode, GunnDiode, Laser diode, Light emitting diodes,Photodiode, PIN diode, PN Junction, Schottky diodes,Step recovery diode, Tunnel diode, Varactordiode and a Zener diode.Which diode is used in Rectifier?
Rectifier diodes are a vital component in powersupplies where they are used to convert AC voltage to DCvoltage. The Zener diodes are used for voltageregulation, preventing unwanted variations in DC supplies within acircuit.What is the functions of diode?
Main functionsThe most common function of a diode is toallow an electric current to pass in one direction (called thediode's forward direction), while blocking it in theopposite direction (the reverse direction).What is the difference between a rectifier and a diode?
Rectifier is a circuit which consists of adiode which has higher current carrying capability and thusused for rectification of AC signal.The major difference betweendiode and rectifier is that the diode is a devicewhich becomes short circuit when it is forward biased and opencircuit when it is reverse biased.What is meant by Schottky diode?
The Schottky diode (named after the Germanphysicist Walter H. Schottky), also known as Schottkybarrier diode or hot-carrier diode, is asemiconductor diode formed by the junction of asemiconductor with a metal. It has a low forward voltage drop and avery fast switching action.What is fast recovery diode?
Definition: Fast Recovery Diode is asemiconductor device which possesses short reverse recoverytime for rectification purpose at high frequency. A quickrecovery time is crucial for rectification of high-frequencyAC signal. Diodes are mostly used in rectifiers because theypossess ultra-high switching speed.Do diodes have resistance?
Just like a resistor or any other load in a circuit, adiode offers resistance in a circuit. Unlikeresistors, though, diodes are not linear devices. This meansthat the resistance of diodes does not vary directlyand proportional to the amount of voltage and current applied tothem.Why diodes are connected in series?
Diodes are connected together in series toprovide a constant DC voltage across the diode combination.The output voltage across the diodes remains constant inspite of changes in the load current drawn from the seriescombination or changes in the DC power supply voltage that feedsthem.What is the difference between a diode and a resistor?
As nouns the difference between diode andresistoris that diode is an electronic device thatallows current to flow in one direction only; a valve whileresistor is one who resists, especially a person who fightsagainst an occupying army.What is a 1n4007 diode used for?
1N4007 is a PN junction rectifier diode.These types of diodes allow only the flow of electricalcurrent in one direction only. So, it can be used for theconversion of AC power to DC. 1N 4007 is electrically compatiblewith other rectifier diodes and can be used insteadof any of the diode belonging to 1N400X series.What is the difference between zener diode and tunnel diode?
The Tunnel diode can be used as an amplifier, orusually as an oscillator, but it can also be used as a switch.Zener diode is a heavily doped p-n junction diode. Itis biased in the reverse direction. So heavy currents canflow but maintaining the same voltage across the junctiondiode.What is VRRM in diode?
VRRM is the maximum allowable repetitiveinstantaneous value of the diode's reverse voltage. Thesetransients are the result of circuit and diode propertiesand are somewhat under the con- trol of the systemdesigner.What does a Shockley diode do?
A shockley diode is a diode which is usedprimarily for switching applications. Unlike other types ofsemiconductor diodes, the shockley diode has morethan a single PN junction. However, like most other diodes,it has 2 terminals endings, which will make connection tothe circuit we are hooking it up to.What is a Schottky rectifier used for?
Applications for SchottkyRectifiers:Schottky rectifiers are ideal for output stagesof switching power supplies. The very fast switching speed ofSchottky rectifiers allows them to be used in veryhigh frequency applications such as very low power signals andswitching diode requirements of less than 100picoseconds.What is Schottky barrier height?
A Schottky barrier refers to ametal-semiconductor contact having a large barrier height(i.e. and low doping concentration that is less than the density ofstates in the conduction band or valence band. The potentialbarrier between the metal and the semiconductor can beidentified on an energy band diagram.What does Rectifier mean?
A rectifier is an electrical device composed ofone or more diodes that converts alternating current (AC) to directcurrent (DC). A diode is like a one-way valve that allows anelectrical current to flow in only one direction. This process iscalled rectification.
